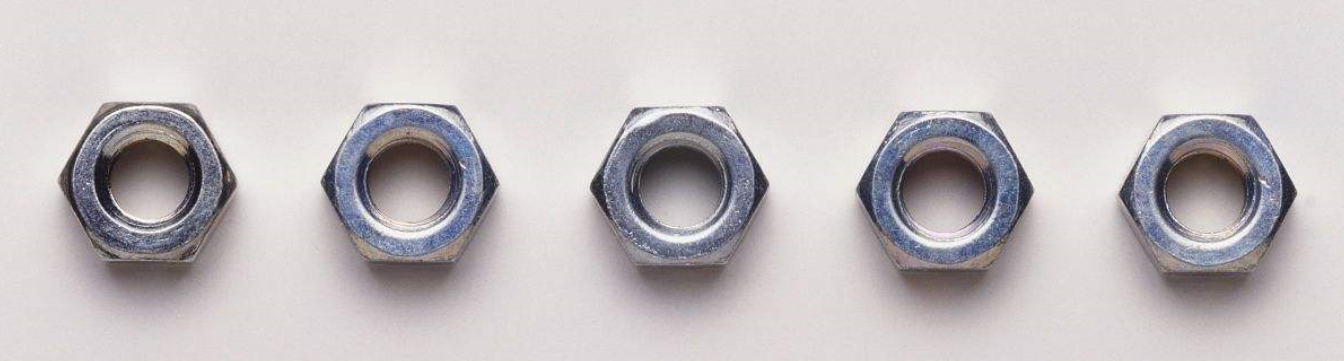

Customized Stainless Galvanized Hex Nut Plain Color M5 - M64 Excellent Corrosion Resistance
Product Description
This product is Stainless Steel Hex Nut Din 934 A2-70 SS 304 316 M36 Plain Color,the material is stainless steel 304 or 316,the standard is DIN934,we also can produce according to GB,ISO,ASTM,JIS etc.,it depends on your request.We can write on the nut,A2-70,SS304 or SS316.The size of this product is M30,our company can produce from M2 - M64.This product is the one of our main products,our company is professional in fasteners production.We specialize in making nuts,bolts,washers and welding studs,our products are of high quality and low price.
Nuts are fasteners that have internal threads and are used in conjunction with bolts. They have internal threads and are used in conjunction with the screw to deliver mechanical parts for motion or power.According to the product properties corresponding to different standards of the state, is divided into ordinary, non-standard, ISO(old), new ISO,American-Standard,British-Standard,German-Standard.Different sizes, thread is divided into different specifications.
Product parameters
Thread
Specifications | To The Margin(MM) | Height H(MM) | Circumference Diameter | Every 1000/KG |
| Nominal Size | Tolerance | Nominal Size | Tolerance |
| M1.6 | 3.2 | -0.16 | 1.3 | ±0.2 | 3.7 | 0.075 |
| M2 | 4 | 1.6 | 4.6 | 0.119 |
| M2.5 | 5 | 2 | 5.8 | 0.22 |
| M3 | 5.5 | 2.4 | 6.3 | 0.393 |
| M4 | 7 | -0.2 | 3.2 | ±0.24 | 8.1 | 0.844 |
| M5 | 8 | 4 | 9.2 | 1.24 |
| M6 | 10 | 5 | 11.5 | 2.317 |
| M8 | 14 | -0.24 | 6 | 16.2 | 5.674 |
| M10 | 17 | 8 | ±0.29 | 19.6 | 10.99 |
| M12 | 19 | -0.28 | 10 | 21.9 | 16.32 |
| M14 | 22 | 11 | ±0.35 | 25.4 | 25.28 |
| M16 | 24 | 13 | 27.7 | 34.12 |
| M18 | 27 | 14 | 31.2 | 44.19 |
| M20 | 30 | -0.34 | 16 | 34.6 | 61.91 |
| M22 | 32 | 18 | 36.9 | 75.94 |
| M24 | 36 | 19 | ±0.5 | 41.4 | 111.9 |
| M27 | 41 | 22 | 47.3 | 168 |
| M30 | 46 | -0.4 | 24 | 53.1 | 234.2 |
| M36 | 55 | 28 | 63.5 | 370.9 |
| M42 | 65 | 32 | 75 | 598.6 |
| M48 | 75 | 38 | 86.5 | 957.3 |
Applications
Automotive industry, machinery manufacturing, pneumatic tools, furniture hardware, construction and so on.
Features
Wide range of applications, characterized by a larger fastening force, the disadvantage is that there must be sufficient space for installation, the installation can be used to live wrenches, open-end wrenches or glasses wrenches, the above wrenches require a lot of space for operation.
